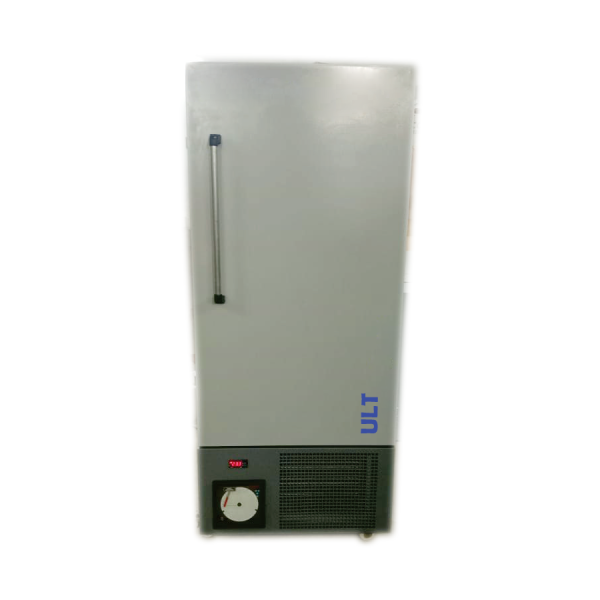

ULTRA LOW TEMPERATURE FREEZER
Asean Make ULT – ultra low temperature deep freezer is the most versatile with high reliability. Asezan ULT is designed to maintain a constant set temperature at all times. Our Asean ULT freezers implement state of the art technology: the cascade refrigeration (CR) system with microprocessor temperature control along with DDD– Dual Digital Display with “Set” and “Actual Internal Temperature”. A major advantage is the availability of an adjustable temperature range from -40˚C to -80˚C with an increment of 1˚C. Additional advantages are “High” efficiency insulation plus cabinet- and door-mounted gaskets contributing energy-efficient performance.
We are offering two variants of the ULT Freezer: Upright Freezer (Vertical Type) and Chest Freezer (Horizontal Type).
Asean freezers are designed to be the best suit for its use in: storage of Plasma Products in blood banks, in hospitals, biological materials for epidemic prevention services, research institutes, and biotech sample storage applications etc.
What more?! We are happy to provide customized extended warranties, On Site Calibration and preventive maintenance plans as per customer’s needs.
- Technical Specification
- Optional Accessories
Temperature Range: Adjustable temperature range from -40˚C to -80˚C with an increment of 1˚C.
Construction: Double wall, outer with M.S 18 swg (7 cycle process powder coat) & Inner tank with Stainless Steel (304/316).
Control: Microprocessor based controller with LED Display with Temperature Indicator cum Controller, with dual display of set Value and Process value for precise control of temperature & along with Mini micro based control in-built to maintain cascade temperature and safe guard low stage compressor
Refrigeration: Specially designed Cascade system with hermetically sealed Imported Embraco /Danfoss compressors (Dual Compressor)
Condenser: Specially designed Condenser with motor made of Ebm-nadi with 28°/34° angle fan blade
Refrigerant: CFC Free (Eco Friendly)
Insulation: 150 mm PUF to minimize temperature loss with10kg/m3 density
Main Door: Main Door with durable Double magnetic rubber gasket and sealed with PPCP material
Freeze Trays: Adjustable type with 3/4 Nos (Applicable for Vertical Freezer Only)
Freezer Sub Door: Independent compartments doors made of Stainless Steel to minimize temperature loss while door opening.
Fuse: Equipped with slow blow fuse for compressor protection
Caster: Smooth moving ball bearing type Castor wheels for moving entire equipment
Door Latch: Provided with latch and Safety lock to prevent unauthorized access.
Door Handle: Door handle provided for easy opening and elegant look
Door heater: Provided to avoid vacuum lock inside the chamber (refrigeration system).
Alarm:1) Audio-visual alarm for high/low temperature.
2) Power Failure Alarm
3) Door Ajar Alarm
Chart Recorder: Seven Days Circular Chart Recorder Inkless And Ink
Air Filter: Front-mounted to be easily accessed by 1/4 turn screws.
Power: Works on 230 V AC single Phase 50Hz
1)Touch Screen Controller :Controller with the software built in on front door of the cabinet, which show multiple necessary components(such as compressors, voltage, sensor temperature both cabinet and ambient etc., to help and quickly identify the cause of a fault or set temp variance, easily accessed through the front panel..
2)Stabilizer
3)In Built Thermal Printer
4)Data Logger with In Built storing System to Record the Data at required interval for printing or send to PC for maintaining data records.
5)Data Logger With 21CFR Part 11 Compliance
6)RS-485 port
7)SMS Alert
8) Battery: Rechargeable battery Backup for Temperature Display , Temperature Recorder and for Alarm System
9) Door Access System
