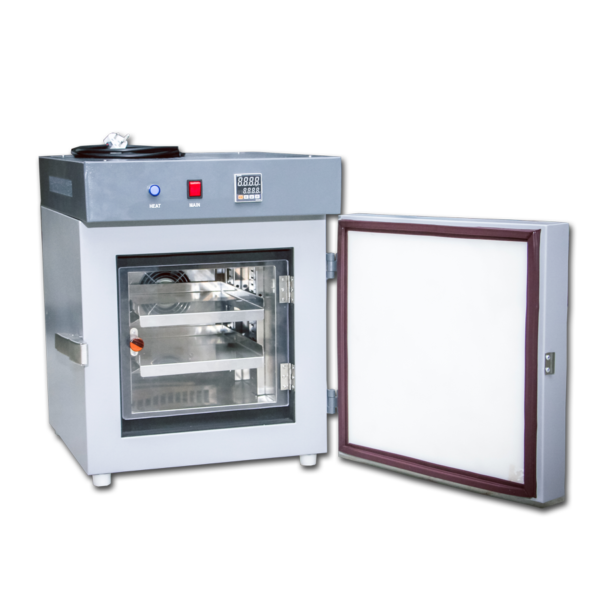

Asean make Bacteriological Incubator is used for the incubation of biological products under controlled conditions. These units are designed to satisfy a wide array of needs of any Research Laboratory, Pharmaceutical Lab, Chemical Lab, Clinical Lab, Microbiological Determination, Pharmaceutical Stability Assays, Food Processing, QC etc for cultivation of bacteria and for facilitating biological test etc.
- Technical Specification
- Optional Accessories
Construction: Double walled: Outer wall of Mild steel powder coated and inner chamber of Stainless steel 304.
CONTROL PANEL: Control panel fitted bottom side of the incubator with the following electrical accessories:
- Digital Temperature Indicator cum Controller
- ON/OFF Switch with indicating lamp
- Heater (On/Off) indicating lamp
Temperature Range: + 5˚C above ambient to 60˚C. (On Request Up to & 70˚C Available)
Controller: Microprocessor based controller with LED Display, PID Digital Temperature Indicator cum Controller, with dual display of set Value and Process value for precise control of temperature.
Accuracy: ± 0.5˚C. (On Request ±0. 2˚C)
Heating System: Heating elements made from the best quality are used.
Fan: Air circulation provided to maintain temperature uniformity.
Door: Main Door with Magnetic gasket with lock and Key.
Trays: Adjustable-Stainless Steel.
Sub Doors: Inner Sub Doors Made of Acrylic
Insulation: PUF to minimize temperature loss
Caster: Smooth moving ball bearing type Castor wheels for moving entire equipment (Johnson make) /Solid Bush at the bottom of the Incubator
Fuse: Equipped with slow blow fuse for compressor protection.
Safety Features: Safety standby thermostat to cut off heater supply in case of overshoot of temperature
Power Supply: Single phase 230V, 50Hz, AC mains.
- In Built Thermal Printer
- Chart Recorder
- Data Logger with In Built storing System to Record the Data at required interval for printing or send to PC for maintaining data records.
- Data Logger With 21CFR Compliance
- Digital Timer
